Features
01. Double reduction system.
02. Compact design and center input flange helps to optimize the weight distribution.
02. Optimized axle weight.
03. Grinded high quality gears for achieving lower noise levels.
Specifications
| Axle type | BRA 101C |
| Bus width (mm) | 2,400~2,550 |
| Max. axle load (kg) | 10,500 |
| Wheel travel (mm) | ±90 |
| Max. output torque (Nm) | 34,000 |
| Ratio1) | 5.77 |
| Tire size1) | 265/70R 19.5 |
| Rim size1) | 19.5”X 7.5” |
| Brake | Disk |
| Axle weight (kg)2) | 870 |
Notes: 1) For other specifications, pls contact GK.
2) Axle weight includes oil, rods, suspension arms, air bellows and shock absorbers.

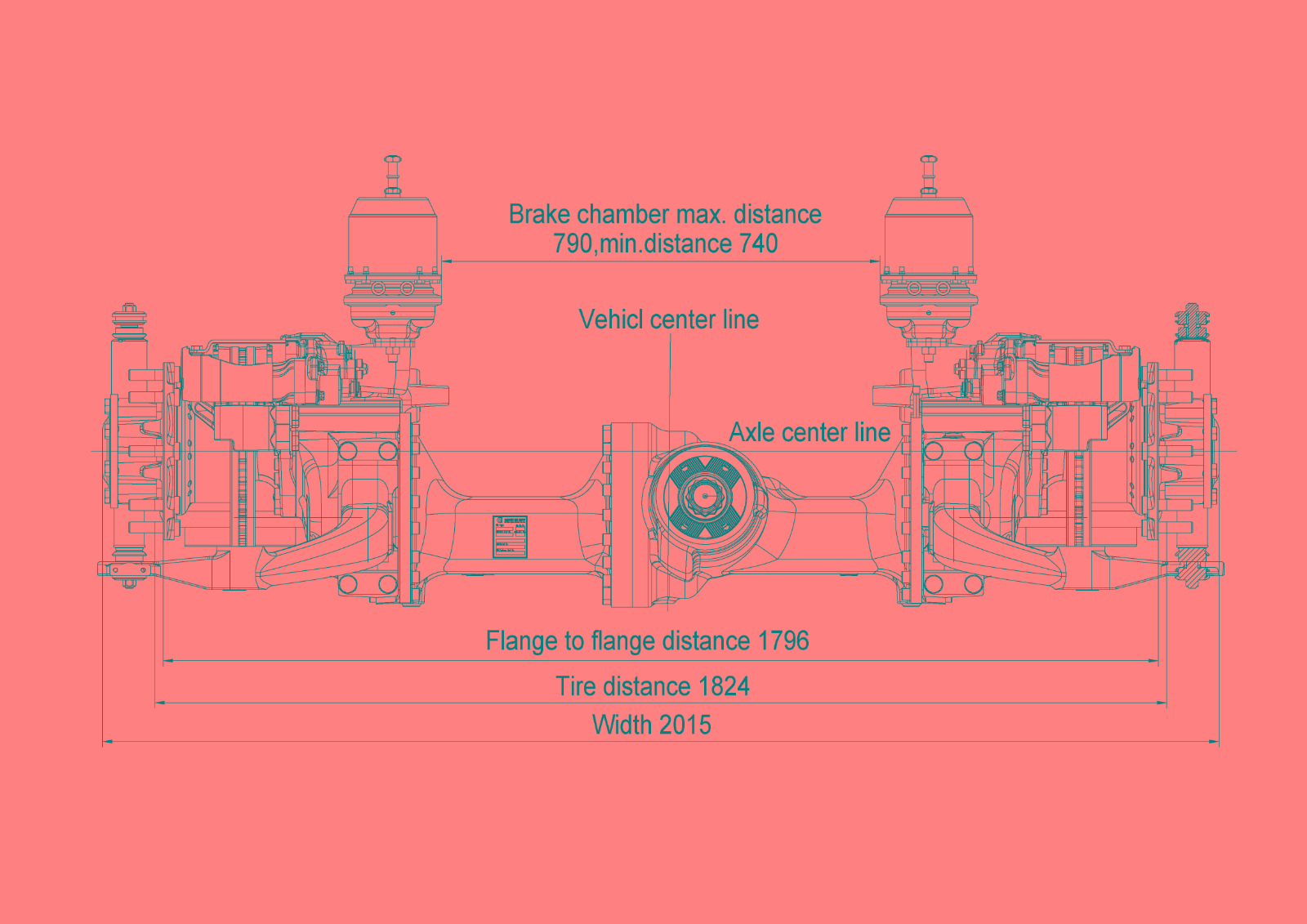

Installation dimensions
