Features
01. Cast iron axle beam improves NVH performance, especially on new energy vehicles.
02. Optimized axle weight.
03. Suitable for 22.5" tires.
04. Grinded high quality hypoid bevel gears for achieving lower noise levels.
Specifications
| Type | BRA 110S | BRA 130S |
| Bus width (mm) | 2,500~2,550 | 2,500~2,550 |
| Max. axle load (kg) | 11,500 | 13,000 |
| Max. output torque (Nm) | 36,000 | 43,000 |
| Ratio1) | 6.14/5.63 | 6.14 |
| Tire size1) | 275/70R 22.5 (Twin) | 275/70R 22.5 (Twin) |
| Rim size1) | 22.5" X 8.25” | 22.5" X 8.25” |
| Brake | Disk | Disk |
| Axle weight (kg)2) | 730 | 750 |
Notes: 1) For other specifications, please contact GK.
2) Axle weight includes oil, suspension arms, rods, air bellows and shock absorbers.

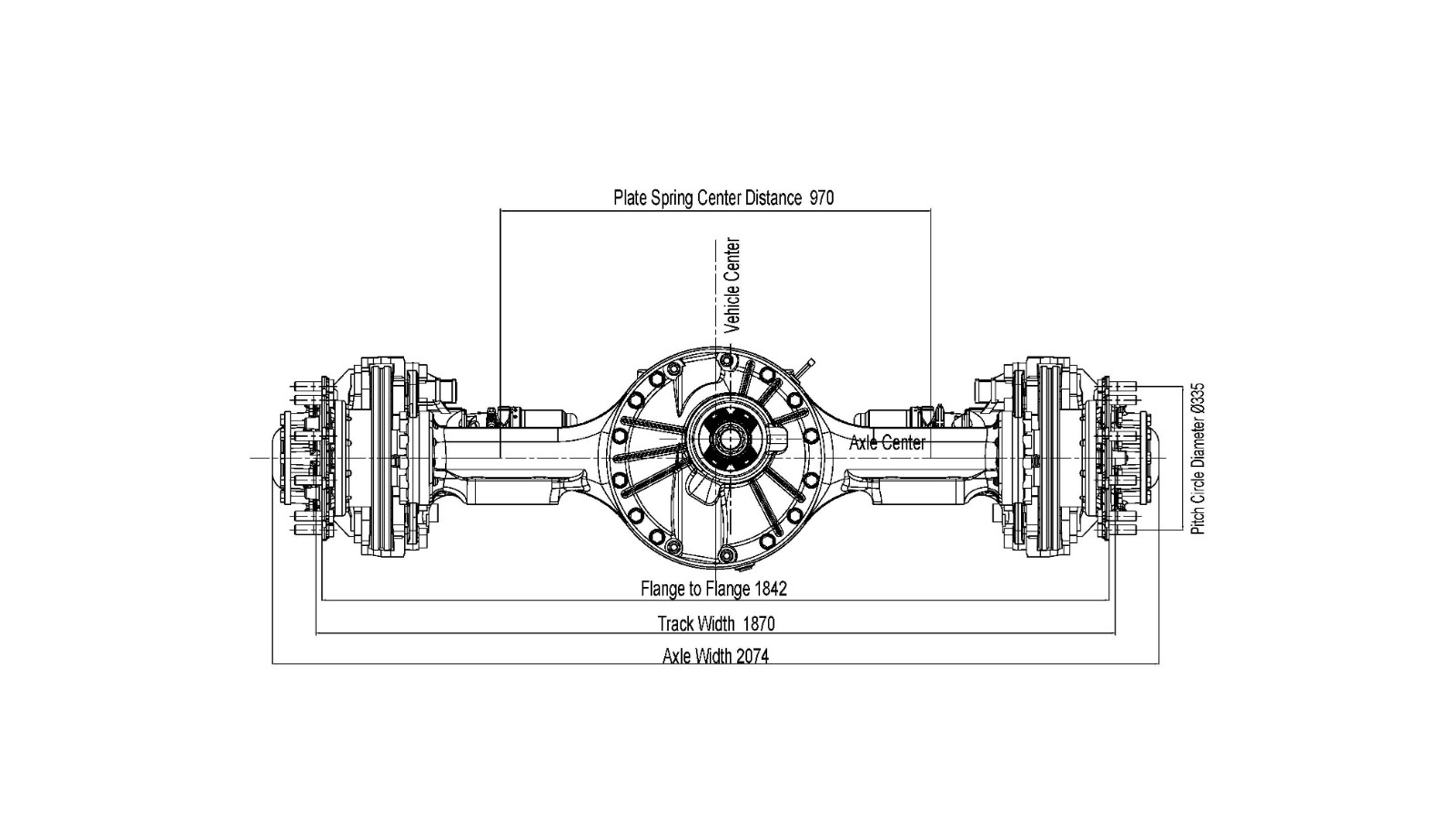

Installation dimensions
