Features
01. An axle with double reduction system provides a better torque and power capability than a single reduction axle, especially on new energy vehicles.
02. Compact design and center input flange helps to optimize the weight districution.
03. Optimized axle weight.
04. Grinded high quality gears for achieving lower noise levels.
Specifications
| Type | BRA 110C | BRA 130C |
| Bus width (mm) | 2,500~2,550 | 2,500~2,550 |
| Max. axle load (kg) | 11,500 | 13,000 |
| Max. output torque (Nm) | 41,000 | 46,000 |
| Ratio1) | 6.29 | 6.29 |
| Tire size1) | 275/70R 22.5 (Twin) | 275/70R 22.5 (Twin) |
| Rim size1) | 22.5" X 8.25” | 22.5" X 8.25” |
| Brake | Disk | Disk |
| Axle weight (kg)2) | 1,015 | 1,025 |
Notes: 1) For other specifications, please contact GK.
2) Axle weight includes oil, suspension arms, rods, air bellows and shock absorbers.

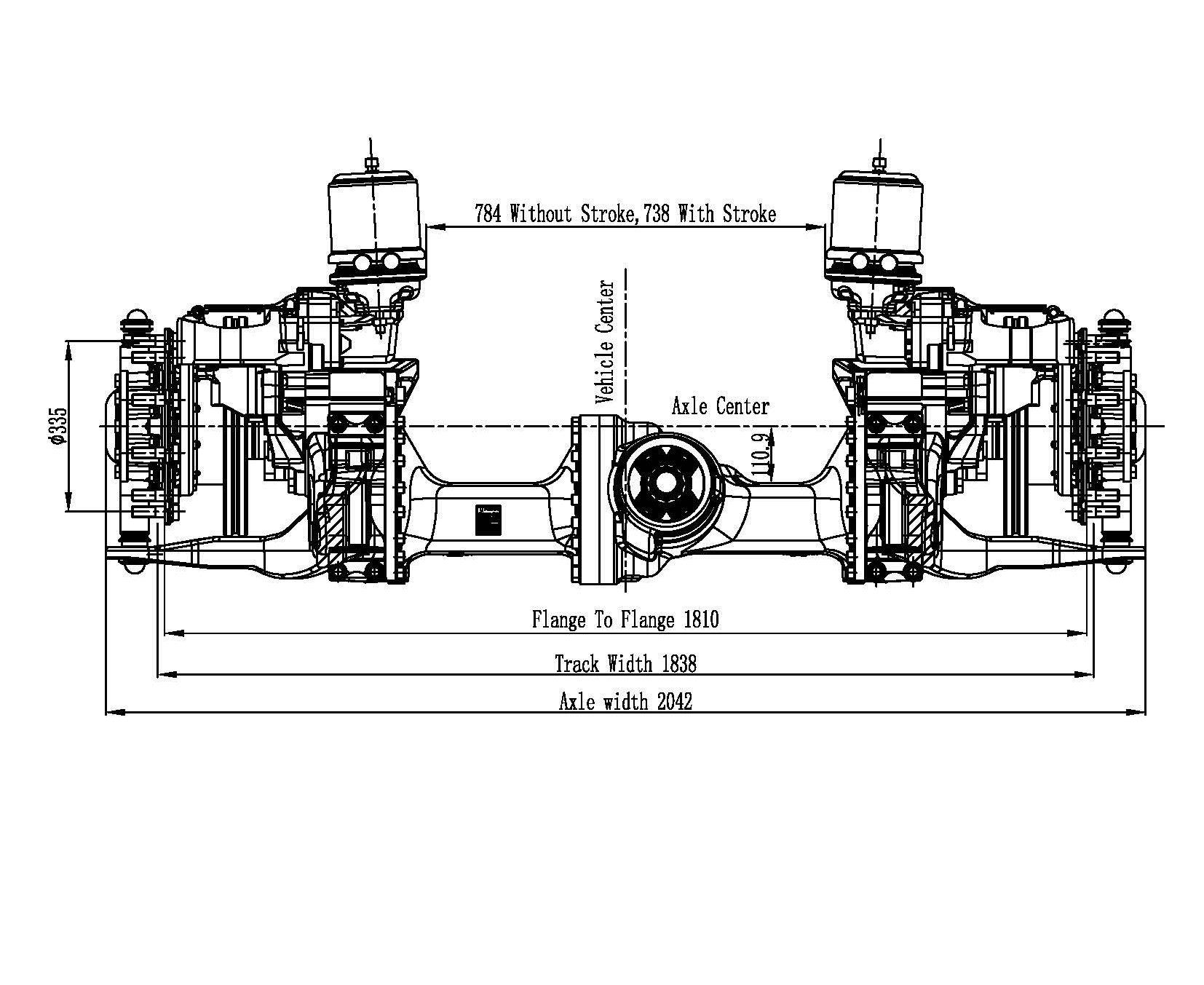

Instation dimensionalls
